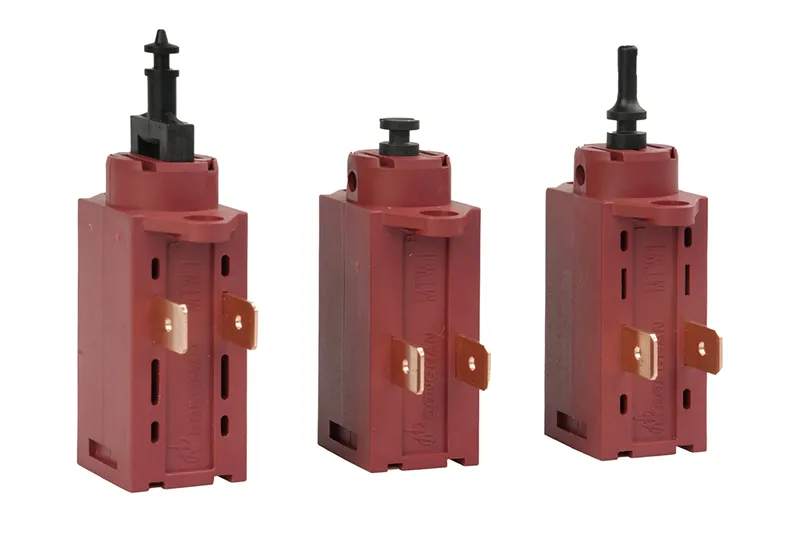

MTW1 wax motor thermal driver
Widely used in dispensers for liquids and cleaning agents, washing machines/dishwashers/refrigerators/electric ovens/embedded steam stoves/ventilation fans: airflow controllers/air dampers, water flow reversing valves, thermal delay devices, safety door buckles and sound insulation devices, air door controllers for air-cooled refrigerators, etc
- High thrust
- No noise
- High stability
- Simple structure
- Quality assurance
- Easy to install
Dimensions

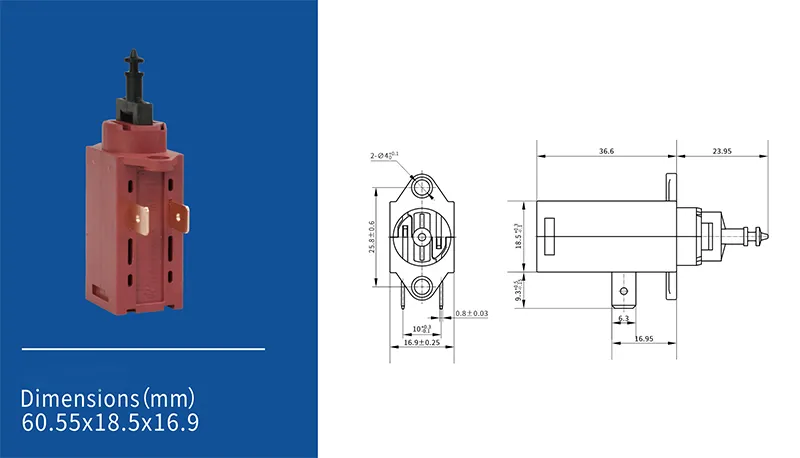

MTW1 Pull type
- Action stroke: 4.98-6.35mm
- Rated thrust: 30N
- Service life: No less than 10000 times under 30N load

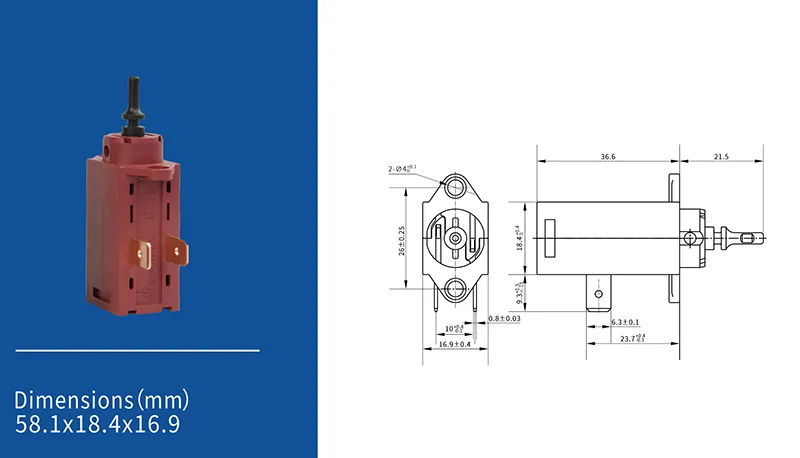

MTW1 Push type
- Travel distance: 4.98-6.35mm
- Rated thrust: 30N
- Service life: at least 10,000 cycles under a 30N load.
Technical characteristics
Simple structure and convenient installation
Technical Characteristics Table
| ltem | Value | ||
| Ratings | 110~240VAC, 50/60Hz, Steady state current
0.12Amax, Pulse current 0.75AMax |
||
| Temperature
|
10T70
|
||
| Insulation Strength | ≥100MΩ (500VDC) (End shell) | ||
| Test Voltage
|
AC2500V 50/60Hz 1min (End shell) | ||
| (mm)PRETRAVE
|
MTW1-AL635
MTW1-AS635 MTW1-AS635-01 |
MTW1-AS800 | MTW1-AS1200 |
| 4.98-6.35 | 6-8.2 | 9-12.3 | |
| Life | Environmental temperature: 20-25 ℃, power on for 90 seconds, power off for 300 seconds | The ambient temperature is 20-25C, and after 120 seconds of power on, the power is cut off for 300 seconds | |
| 18000 MIN (no load)
10000 MIN (30N) |
18000 MIN (no load)
7000 MIN (70N) |
10000 MIN (no load)
5000 MIN (70N) |
|
